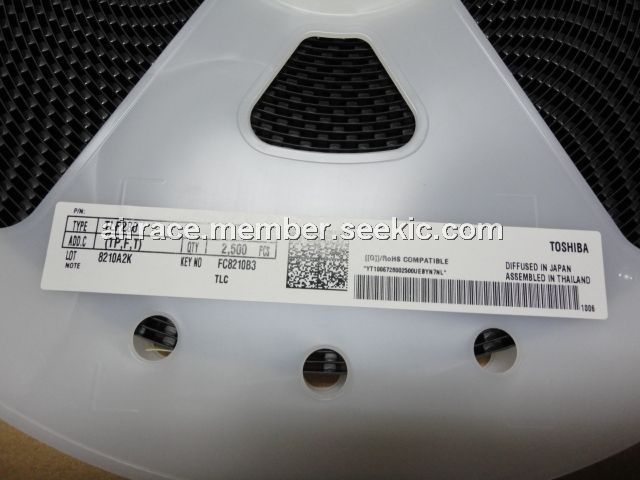

TLP280

coupler, SOP, ±50 mA, 200 mW, 2500 Vrms, 80 V, 50%

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.40

PartNumber:: TLP280

Brand:: Toshiba Semiconductor - Toshiba | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ray Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:TLP280
US $0.30 - 0.40
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TLP280 is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA fax modem, programmable controllers. The TLP280 consists of photo transistor, optically coupled to two gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current.

Parametrics

TLP280 absolute maximum ratings: (1)Forward current: ±50 mA; (2)Forward current derating (Ta ≥ 53℃): -0.7 mA/℃; (3)Pulse forward current: ±1 A; (4)Junction temperature: 125 ℃; (5)Detector Collector-emitter voltage: 80 V; (6)Emitter-collector voltage: 7 V; (7)Collector current: 50 mA; (8)Power dissipation: 150 mW; (9)Power dissipation derating (Ta ≥ 25℃): -1.5 mW/℃; (10)Junction temperature: 125 ℃; (11)Storage temperature range: -55~125 ℃; (12)Operating temperature range: -55~100 ℃; (13)Lead soldering temperature (10 s): 260 ℃; (14)Total package power dissipation: 200 mW.

Features

TLP280 features: (1)Collector.emitter voltage: 80 V (min); (2)Current transfer ratio: 50% (min): Rank GB: 100% (min); (3)Isolation voltage: 2500 Vrms (min); (4)UL recognized: UL1577, file No. E67349; (5)BSI approved: BS EN 60065: 1994,; (6)BS EN 41003: 1997, Certificate No. 8143, 8144.
