Product Summary

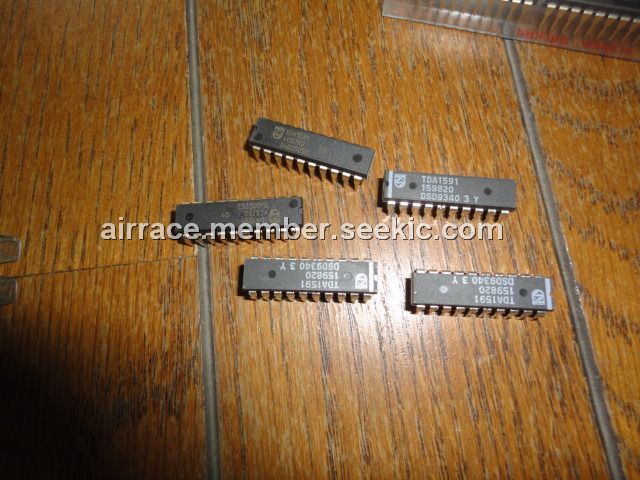

The TDA1591 is a monolithic bipolar integrated circuit providing the stereo decoder function and noise blanking for FM car radio applications. The TDA1591 operates in a power supply range of 7.5 to 12 V.
Parametrics
TDA1591 absolute maximum ratings: (1)supply voltage (pin 5):0 to 13.2 V; (2)total power dissipation:0 to 0.25 W; (3)storage temperature:-55 to +150℃; (4)operating ambient temperature:-40 to +85℃.
Features
TDA1591 features: (1)Adjustment-free voltage controlled PLL oscillator for ceramic resonator (f = 456 kHz); (2)Pilot signal dependent mono/stereo switching; (3)Analog control of mono/stereo change over [stereo blend, Stereo Noise Controller (SNC)]; (4)Adjacent channel noise suppression (114 kHz); (5)Pilot canceller; (6)Analog control of de-emphasis; High Cut Control (HCC); (7)Applicable as source selector for AM/FM/cassette switching; (8)Separate interference noise detector; (9)Integrated input low-pass filter for delayed noise blanking; (10)Noise blanking at MPX-demodulator outputs; (11)Internal voltage stabilization.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA1591 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
TDA1591T/V3,112 |
|
IC STEREO DECODE PLL 20-SOIC |
Data Sheet |
Negotiable |
|
||||
|
TDA1591T/V3,118 |
|
IC DECODER STEREO PLL 20SOIC |
Data Sheet |
Negotiable |
|
||||
