Product Summary

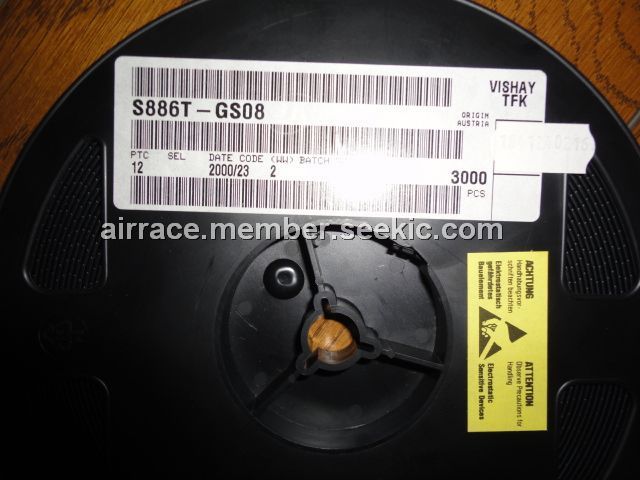

The S886T-GS08 is a MOSMIC for TV-Tuner Prestage with 12 V Supply Voltage.

Parametrics

S886T-GS08 absolute maximum ratings: (1)Drain - source voltage VDS: 16 V; (2)Drain current ID: 30 mA; (3)Gate 1/Gate 2 - source peak current ±IG1/G2SM: 10 mA; (4)Gate 1/Gate 2 - source voltage ±VG1/G2SM: 7.5 V; (5)Total power dissipation Tamb: 200 mW; (6)Channel temperature TCh: 150 ℃; (7)Storage temperature range Tstg: –55 to +150 ℃.

Features

S886T-GS08 features: (1)Integrated gate protection diodes; (2)Low noise figure; (3)High gain; (4)Biasing network on chip; (5)Improved cross modulation at gain reduction; (6)High AGC-range; (7)SMD package.

Diagrams

S886T-GS08 circuit
