Product Summary

The RC0603FR-07453KL is a thick film chip resistor with lead-free terminations made by thick film process. It is designed for general purpose applications, laptop and notebook computer, memory module, digital camera and telecommunication equipment, etc.

Parametrics

RC0603FR-07453KL characteristics: (1)Operating Temperature Range: –55 ℃ to +155 ℃; (2)Maximum Working Voltage: 50 V; (3)Maximum Overload Voltage: 100 V; (4)Dielectric Withstanding Voltage: 100 V; (5)Resistance Range: 5% (E24) 1 Ω to 22 MΩ; 1% (E96) 1 Ω to 10 MΩ; Zero Ohm Jumper < 0.05 Ω; (6)Temperature Coefficient: 10 Ω < R ≤ 10 MΩ ±100 ppm/℃; R ≤ 10 Ω; R > 10 MΩ ±200 ppm/℃; (7)Jumper Criteria: Rated Current 1.0 A; Maximum Current 2.0 A.

Features

RC0603FR-07453KL features: (1)Small and light weight; (2)Excellent heat resistance and moisture resistance; (3)Suitable size and packaging for surface mount assembly; (4)RoHS Compliant.

Diagrams

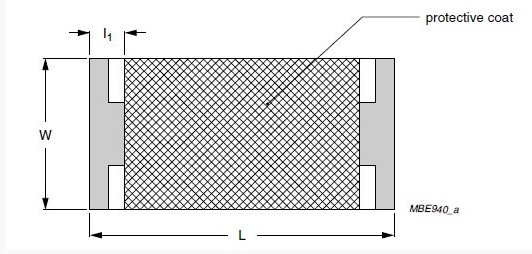

RC0603FR-07453KL diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

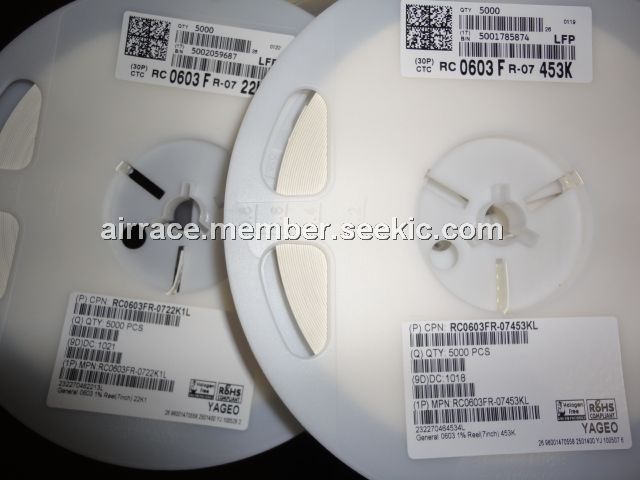

RC0603FR-07453KL
RC0603FR-07453KL

Yageo

Thick Film Resistors - SMD 453K OHM 1%

Data Sheet

0-5000: $0.01
5000-10000: $0.01
10000-25000: $0.00
25000-50000: $0.00
