Product Summary

The TE28F320J3C110 is an Intel StrataFlash Memory. The optimized architecture and interface of the TE28F320J3C110 dramatically increases read performance by supporting page-mode reads. This read mode is ideal for non-clock memory systems. The TE28F320J3C110 incorporates a Write Buffer of 32 bytes (16 words) to allow optimum programming performance.

Parametrics

TE28F320J3C110 absolute maximum ratings: (1)Temperature under Bias Extended: -40℃ to +85℃; (2)Storage Temperature: -65℃ to +125℃; (3)Voltage On Any signal: -2.0 V to +5.0 V; (4)Output Short Circuit Current: 100 mA.

Features

TE28F320J3C110 features: (1)110/115/120/150 ns Initial Access Speed; (2)125 ns Initial Access Speed (256 Mbit density only); (3)25 ns Asynchronous Page mode Reads; (4)30 ns Asynchronous Page mode Reads (256Mbit density only); (5)100K Minimum Erase Cycles per Block; (6)0.18 μm ETOX. VII Process (J3C); (7)0.25 μm ETOX. VI Process (J3A).

Diagrams

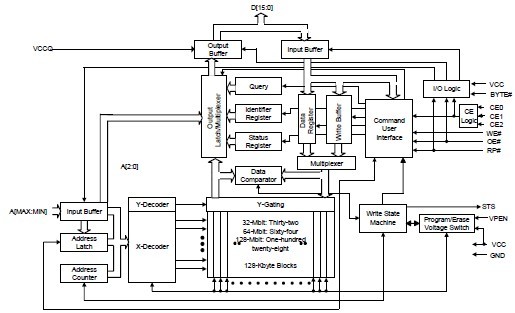

TE28F320J3C110 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TE28F320J3C110SL7H8
TE28F320J3C110SL7H8


IC FLASH 32MBIT 110NS 56TSOP

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TE28F320J3D75A
TE28F320J3D75A


IC FLASH 32MBIT 75NS 56TSOP

Data Sheet

Negotiable
TE28F640J3C115SL7HA
TE28F640J3C115SL7HA


IC FLASH 64MBIT 115NS 56TSOP

Data Sheet

Negotiable
TE28F320J3C110SL7H8
TE28F320J3C110SL7H8


IC FLASH 32MBIT 110NS 56TSOP

Data Sheet

Negotiable
TE28F004SC-100
TE28F004SC-100

Other


Data Sheet

Negotiable
TE28F004S3-150
TE28F004S3-150

Other


Data Sheet

Negotiable
TE28F800B3TA120
TE28F800B3TA120

Other


Data Sheet

Negotiable
