Product Summary

The TPS5420DR is a SWIFT Converter.

Parametrics

TPS5420DR absolute maximum ratings: (1)VIN: –0.3 to 40V; (2)BOOT: –0.3 to 50V; (3)PH (steady-state): –0.6 to 40V; (4)VI Input voltage range EN: –0.3 to 7 V; (5)VSENSE: –0.3 to 3V; (6)BOOT-PH: 10V; (7)PH (transient < 10 ns): –1.2; (8)IO Source current PH: Internally Limited; (9)Ilkg Leakage current PH: 10 μA; (10)TJ Operating virtual junction temperature range: –40 to 150 ℃; (11)Tstg Storage temperature: –65 to 150 ℃.

Features

TPS5420DR features: (1)Wide Input Voltage Range: 5.5 V to 36 V; (2)Up to 2-A Continuous (3-A Peak) Output Current; (3)Available in Small 8-Pin SOIC Package; (4)–40°C to 125°C Operating Junction Temperature Range; (5)Fixed 500-kHz Switching Frequency for Small: Filter Size; (6)package: 8SOIC.

Diagrams

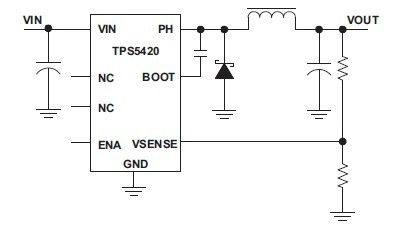

TPS5420DR SIMPLIFIED SCHEMATIC

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

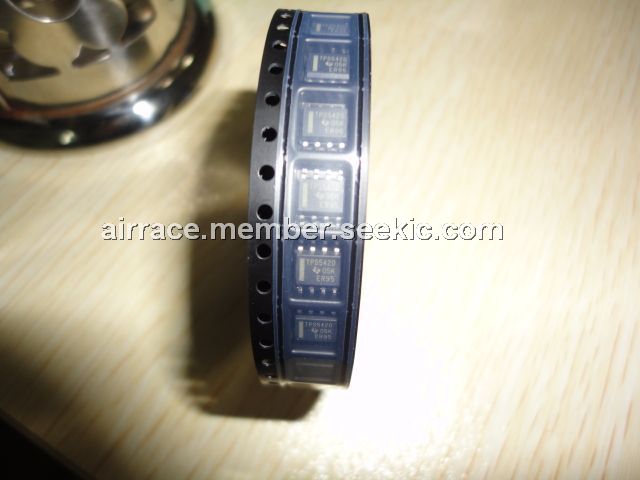

TPS5420DR
TPS5420DR

Texas Instruments

DC/DC Switching Regulators 5.5 to 36V 2A Step Down Swift Conv

Data Sheet

0-1: $2.51
1-25: $2.29
25-100: $2.09
100-250: $1.88
TPS5420DRG4
TPS5420DRG4

Texas Instruments

DC/DC Switching Regulators 5.5 to 36V 2A Step Down Swift Conv

Data Sheet

0-1860: $1.37
1860-2000: $1.30
2000-2500: $1.30
2500-5000: $1.27
