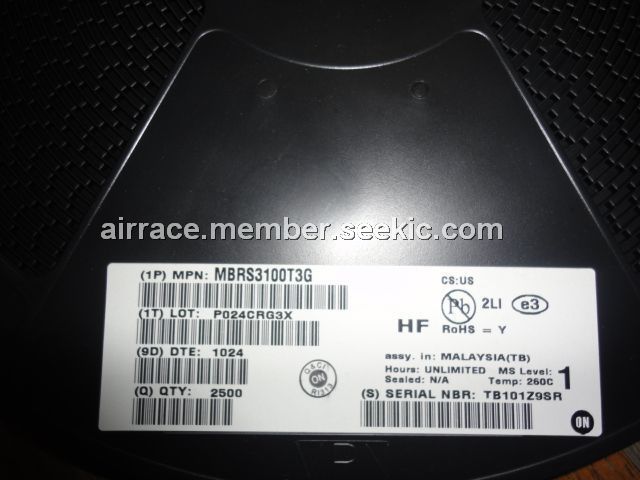

Product Summary

The MBRS3100T3G schottky power rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. The MBRS3100T3G is Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount applications where compact size and weight are critical to the system.

Parametrics

MBRS3100T3G maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 100 V; (2)Working Peak Reverse Voltage, VRWM: 100 V; (3)DC Blocking Voltage, VR: 100 V; (4)Average Rectified Forward Current(At Rated VR, TL = 100℃), IF(AV): 3.0 A; (5)Nonrepetitive Peak Surge Current(Surge applied at rated load conditions halfwave, single phase, 60 Hz), IFSM: 130 A; (6)Operating Junction Temperature Range, TJ: -65 to +175 ℃.

Features

MBRS3100T3G features: (1)Small Compact Surface Mountable Package with J-Bend Leads; (2)Rectangular Package for Automated Handling; (3)Highly Stable Oxide Passivated Junction; (4)Excellent Ability to Withstand Reverse Avalanche Energy Transients; (5)Guard-Ring for Stress Protection; (6)This is a Pb-Free Device.

Diagrams

MBRS3100T3G package dimentions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBRS3100T3G
MBRS3100T3G
ON Semiconductor
Schottky (Diodes & Rectifiers) 3A 100V
Data Sheet
0-1: $0.50
1-25: $0.38
25-100: $0.34
100-500: $0.25
