Product Summary

The STPS340U-TR is a Single chip Schottky rectifier. It is suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in SMB, SMC and DPAK, the STPS340U-TR is intended for use in low and medium voltage operation, high frequency inverters, free wheeling and polarity protection applications where low switching losses are required.

Parametrics

STPS340U-TR absolute maximum ratings: (1)Repetitive peak reverse voltage: 40V; (2)RMS forward current:10A; (3)Average forward current: 3A; (4)Surge non repetitive forward current:75A; (5)Repetitive peak reverse current:1A; (6)Repetitive peak avalanche power: 1300W; (7)Storage temperature range:-65℃ to +150℃; (8)Maximum operating junction temperature:+150℃; (9)Critical rate of rise of reverse voltage:10000V/us.

Features

STPS340U-TR features: (1)very small conduction losses; (2)negligible switching losses; (3)low forward voltage drop; (4)low thermal resistance; (5)extremely fast switching; (6)surface mounted device; (7)avalanche capability specified.

Diagrams

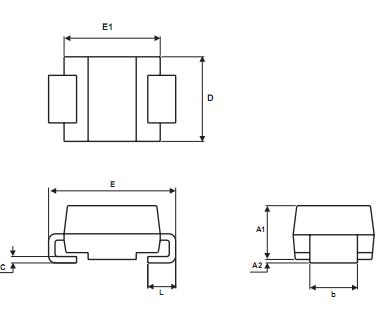

STPS340U-TR dimensions
