Product Summary

The PC28F256P30T85 is an Intel StrataFlash Embedded Memory. Offered in 64-Mbit up through 1-Gbit densities, the PC28F256P30T85 brings reliable, two-bit-per-cell storage technology to the embedded flash market segment. Benefits include more density in less space, high-speed interface, lowest cost-per-bit NOR device, and support for code and data storage. Features include high-performance synchronous-burst read mode, fast asynchronous access times, low power, flexible security options, and three industry standard package choices. The PC28F256P30T85 is manufactured using Intel 130 nm ETOX VIII process technology.

Parametrics

PC28F256P30T85 absolute maximum ratings: (1)Temperature under bias:–40℃ to +85℃; (2)Storage temperature:–65℃ to +125℃; (3)Voltage on any signal (except VCC, VPP):–0.5V to +4.1V; (4)VPP voltage:–0.2V to +10V; (5)VCC voltage:–0.2V to +2.5V; (6)VCCQ voltage:–0.2V to +4.1V; (7)Output short circuit current:100 mA.

Features

PC28F256P30T85 features: (1)85/88 ns initial access; (2)40 MHz with zero wait states, 20 ns clock-to-data output synchronous-burst read mode; (3)25 ns asynchronous-page read mode; (4)4-, 8-, 16-, and continuous-word burst mode; (5)Buffered Enhanced Factory Programming (BEFP) at 5 μs/byte (Typ); (6)1.8 V buffered programming at 7 μs/byte (Typ); (7)20 μs (Typ) program suspend; (8)20 μs (Typ) erase suspend; (9)Intel Flash Data Integrator optimized; (10)Basic Command Set and Extended Command Set compatible; (11)Common Flash Interface capable; (12)VCC (core) voltage: 1.7 V to 2.0 V; (13)VCCQ (I/O) voltage: 1.7 V to 3.6 V; (14)Standby current: 55 μA (Typ) for 256-Mbit; (15)4-Word synchronous read current: 13 mA (Typ) at 40 MHz.

Diagrams

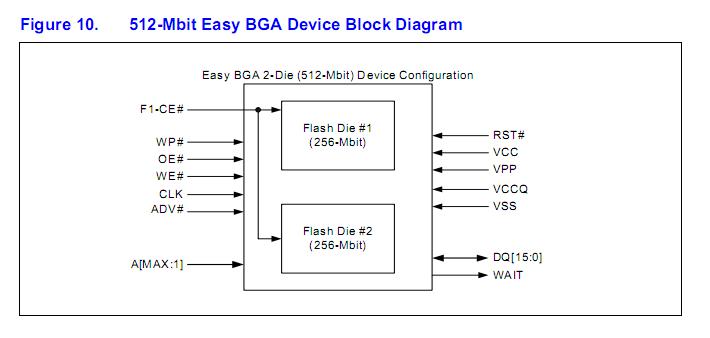

PC28F256P30T85 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PC28F256P30T85A
PC28F256P30T85A

IC FLASH 256MBIT 85NS 64EZBGA
Data Sheet
Negotiable
PC28F256P30T85B
PC28F256P30T85B

IC FLASH 256MBIT 85NS 64EZBGA
Data Sheet
Negotiable
