Product Summary
The INA-10386-TR1 is a low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) 5965-9679E feedback amplifier housed in a low cost surface mount plastic package. The INA-10386-TR1 is designed for narrow or wide bandwidth commercial and industrial applications that require high gain and moderate power. The INA-10386-TR1 is fabricated using HPs 10 GHz fT, 25GHz f MAX, ISOSAT-I silicon bipolar process which uses nitride self-alignment, submicrometer lithography, trench isolation, ion implantation, gold metallization and polyimide intermetal dielectric and scratch protection to achieve excellent performance, uniformity and reliability.
Parametrics
INA-10386-TR1 absolute maximum ratings: (1)Device Current: 80 mA; (2)Power Dissipation: 750 mW; (3)RF Input Power: +13 dBm; (4)Junction Temperature: 150℃; (5)Storage Temperature: –65 to 150℃.
Features
INA-10386-TR1 features: (1)Cascadable 50 W Gain Block; (2)3 dB Bandwidth: DC to 1.8 GHz; (3)26 dB Typical Gain at 1.5GHz; (4)10 dBm Typical P1dB at 1.5GHz; (5)Unconditionally Stable (k>1); (6)Surface Mount Plastic Package.

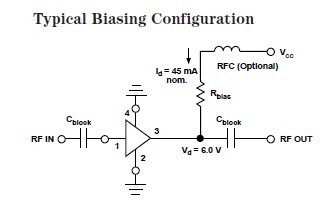

Diagrams
 |
