Product Summary

The XC2C64A-7VQG44I is a CPLD. The XC2C64A-7VQG44I delivers the high speed and ease of use associated with the XC9500/XL/XV CPLD family with the extremely low power versatility of the XPLA3 family in a single CPLD. This means that the exact same parts of the XC2C64A-7VQG44I can be used for high-speed data communications/computing systems and leading edge portable products, with the added benefit of In System Programming. Low power consumption and high-speed operation are combined into the XC2C64A-7VQG44I that is easy to use and cost effective.

Parametrics

XC2C64A-7VQG44I absolute maximum ratings: (1)VCC, Supply voltage relative to GND: –0.5 to 2.0 V; (2)VI, Input voltage relative to GND: –0.5 to 4.0 V; (3)TA, Ambient Temperature (C-grade): 0 to 70℃; Ambient Temperature (I-grade): –40 to 85℃; (4)TJ, Maximum junction temperature: –40 to 150℃; (5)TSTR, Storage temperature: –65 to 150℃.

Features

XC2C64A-7VQG44I features: (1)Optimized for 1.8V systems: Industry fastest low power CPLD; Densities from 32 to 512 macrocells; (2)Industry best 0.18 micron CMOS CPLD: Optimized architecture for effective logic synthesis ; Multi-voltage I/O operation — 1.5V to 3.3V ; (3)Fastest in system programming; (4)1.8V ISP using IEEE 1532 (JTAG) interface; (5)On-The-Fly Reconfiguration (OTF); (6)IEEE1149.1 JTAG Boundary Scan Test; (7)Optional Schmitt trigger input (per pin); (8)Multiple I/O banks on all devices; (9)Unsurpassed low power management; (10)DataGATE external signal control: Flexible clocking modes; (11)Optional DualEDGE triggered registers; (12)Clock divider (÷ 2,4,6,8,10,12,14,16); (13)CoolCLOCK ; (14)Global signal options with macrocell control; (15)Multiple global clocks with phase selection per macrocell.

Diagrams

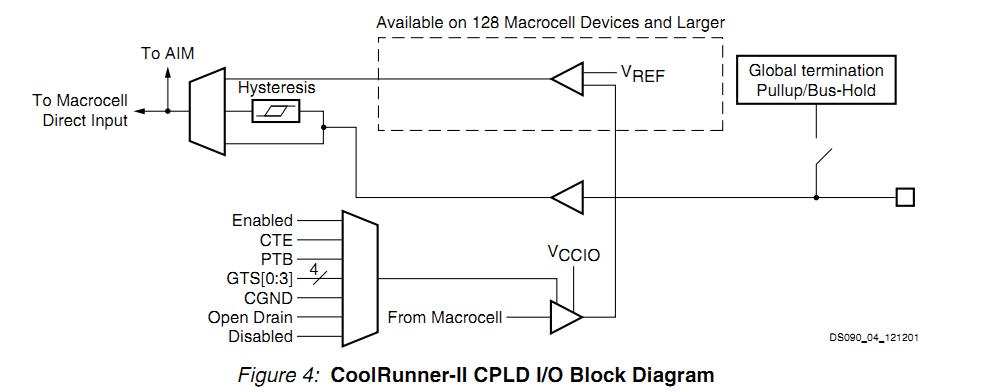

XC2C64A-7VQG44I block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC2C64A-7VQG44I
XC2C64A-7VQG44I


IC CR-II CPLD 64MCELL 44-VQFP

Data Sheet

0-1: $1.74
1-25: $1.68
25-100: $1.64
