PIC16F883-I/SP

Product Summary

The PIC16F883-I/SP is an Enhanced Flash-Based, 8-Bit CMOS Microcontroller with nanoWatt Technology. The PIC16F883-I/SP is available in 28-pin PDIP, SOIC, SSOP and QFN packages.

Parametrics

PIC16F883-I/SP absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA, PORTB and PORTE (combined): 200 mA; (14)Maximum current sourced by PORTA, PORTB and PORTE (combined): 200 mA; (15)Maximum current sunk by PORTC and PORTD (combined): 200 mA; (16)Maximum current sourced by PORTC and PORTD (combined): 200 mA.

Features

PIC16F883-I/SP features: (1)Only 35 instructions to learn: All single-cycle instructions except branches; (2)Operating speed: DC – 20 MHz oscillator/clock input; DC – 200 ns instruction cycle; (3)Interrupt capability; (4)8-level deep hardware stack; (5)Direct, Indirect and Relative Addressing modes; (6)Factory calibrated to ±1%; (7)Software selectable frequency range of ; (8)8 MHz to 31 kHz; (9)Software tunable; (10)Two-Speed Start-up mode; (11)Crystal fail detect for critical applications; (12)Clock mode switching during operation for ; (13)power savings; (14)Power-Saving Sleep mode; (15)Wide operating voltage range (2.0V-5.5V); (16)Industrial and Extended Temperature range; (17)Power-on Reset (POR); (18)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (19)Brown-out Reset (BOR) with software control option.

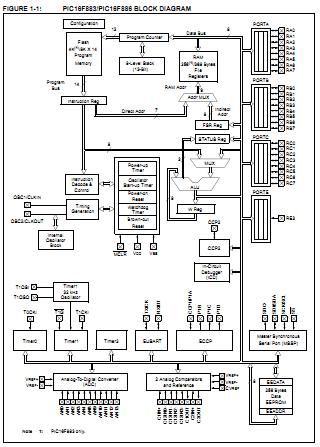

Diagrams
