Product Summary

The 3224W-1-502E is a 3224 - 4 mm SMD Trimming Potentiometer.

Parametrics

3224W-1-502E electrical characteristics: (1)Standard Resistance Range: 10 ohms to 2 megohms; (2)Resistance Tolerance: ±10 % std; (3)Absolute Minimum Resistance: 1 % or 2 ohms (whichever is greater); (4)Contact Resistance Variation: 1.0 % or 3 ohms max.; (5)Resolution: essentially Infinite; (6)Insulation Resistance: 500 vdc. 1,000 megohms min.; (7)Dielectric Strength Sea Level: 600 vac (1minute); (8)Adjustment angle: 12 turns nom.

Features

3224W-1-502E features: (1)Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed; (2)Sealed to withstand board wash processing; (3)Pick and place centering design, with flush adjustment; (4)4mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint; (5)Low CRV - 1 %; (6)DESC selected material drawing #92021; (7)RoHS compliant.

Diagrams

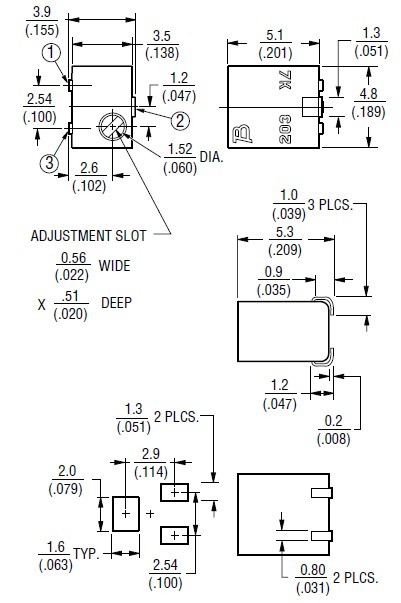

3224W-1-502E dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
3224W-1-502E
3224W-1-502E
Bourns
Trimmer Resistors - SMD 4mm 5Kohms 10% Square Cermet Sealed
Data Sheet
0-1: $3.13
1-10: $2.68
10-50: $2.52
50-100: $2.32
