Product Summary
The MC33079DR2G is a monolithic quad operational amplifier particularly well suited for audio applications. It offers low voltage noise (4.5 nV/√Hz) and high frequency performance (15 MHz gain bandwidth product, 7 V/μs slew rate). In addition the MC33079DR2G has a very low distortion (0.002%) and excellent phase/gain margins. The output stage allows a large output voltage swing and symmetrical source and sink currents.
Parametrics
MC33079DR2G absolute maximum ratings: (1)VCC, Supply voltage: ±18 or +36 V; (2)Vid, Differential input voltage: ±30 V; (3)Vi, Input voltage: ±15 V; (4)Tj, Junction temperature: +150 ℃; (5)Tstg, Storage temperature: -65 to +150℃; (6)Rthja, Thermal resistance junction to ambient: 105 ℃/W; (7)Rthjc, Thermal resistance junction to case: 31℃/W; (8)ESD, HBM: human body model: 2kV; MM: machine model: 200 V; CDM: charged device model: 1.5 kV.
Features
MC33079DR2G features: (1)Low voltage noise: 4.5 nV/√Hz; (2)High gain bandwidth product: 15 MHz; (3)High slew rate: 7 V/μs; (4)Low distortion: 0.002%; (5)Large output voltage swing: +14.3 V/-14.6 V; (6)Excellent frequency stability; (7)ESD protection 2 kV; (8)Macromodel included in this specification.

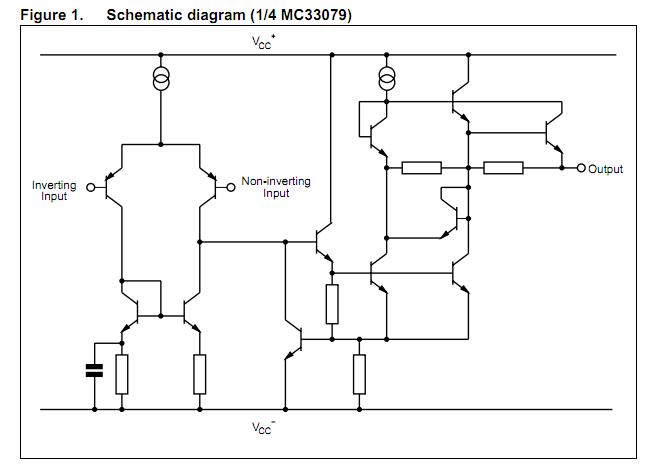

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33079DR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 5-18V Quad Lo Noise 7V/us Ind. Temp |
Data Sheet |
|
|
||||||||||||
