Product Summary

The CX4011NLT is a RF splitter for RF applications in cable media products and distribution equipment.

Parametrics

CX4011NLT absolute maximum ratings: (1)frequency: 5-1000MHz; (2)isolation, 24dB typ, 14dB min at 5-400MHz; 30dB typ, 16dB min at 400-1000MHz; (3)return loss, 30 typ, 22 max when input, 20 typ, 15 max when output; (4)insertion: 0.50dB typ, 0.60dB max when 650-750MHz, 0.60dB typ, 0.75dB min when 750-870MHz, 0.70dB typ, 1.00dB min when 870-1000MHz.

Features

CX4011NLT features: (1)Operating bandwidth: 5 MHz to 1000 MHz; (2)Ideal for cable distribution equipment and set top box applications; (3)High Isolation; (4)Excellent VSWR; (5)235℃ peak IR reflow temperature rating.

Diagrams

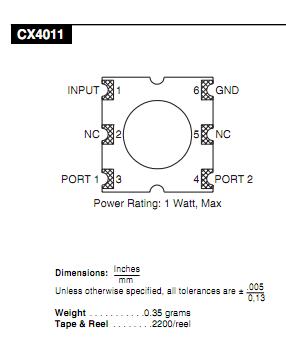

CX4011NLT block diagram

CX400-12T-3Y
CX400-12T-3Y
Panduit

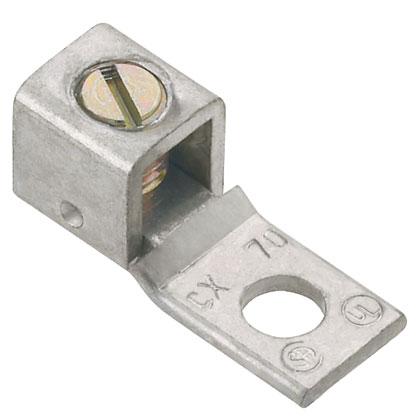

Terminals Copper Mech Lug, 1 Hole, Fixed Tongue, T
