Product Summary

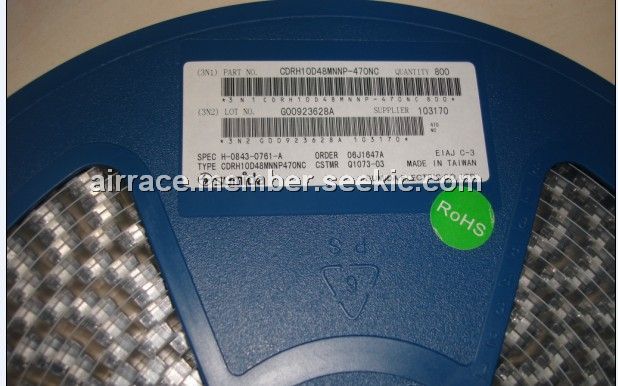

The CDRH10D48MNNP-470NC is a power inductor.

Parametrics

CDRH10D48MNNP-470NC absolute maximum ratings: (1)Inductance 100kHz/1V: 470μH±25%; (2)D.C.R.(mΩ) Max.(Typ.) (at 20℃): 965(772)mΩ; (3)Saturation Current (at20℃): 0.80A; (at105℃): 0.62A; (4)Temperature rise current: 0.49A.

Features

CDRH10D48MNNP-470NC features: (1)Magnetically shielded construction.; (2)Hybrid power inductors use Mn-Zn D.core & Ni-Zn R.core, used as general power inductors.; (3)Higher saturation current characteristics than that of Ni-Zn inductors.; (4)Usually used in LCD driver,DSC/DVC,Notebook PC or the other portable equipment; (5)RoHS Compliance.

Diagrams

CDRH10D48MNNP-470NC dimensions
