Product Summary
The SMBJ12CA-E3/52 is the 600W surface mount transient voltage suppressor.
Parametrics
SMBJ12CA-E3/52 absolute maximum ratings: (1)Peak Pulse Power Dissipation 10/1000μS Waveform (Note 1, 2)Figure 3: 600 Minimum W; (2)Peak Pulse Current on 10/1000μS Waveform (Note 1) Figure 4: See Table 1 A; (3)Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) (Note 2, 3): 100 A; (4)Operating and Storage Temperature Range Tj, TSTG: -55 to +150℃.
Features
SMBJ12CA-E3/52 features: (1)Glass Passivated Die Construction; (2)600W Peak Pulse Power Dissipation; (3)5.0V – 170V Standoff Voltage; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

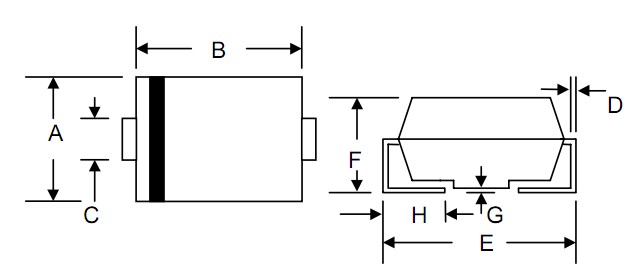

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMBJ12CA-E3/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 12V 5% Bidir |
Data Sheet |
|
|
|||||||||||||
