Product Summary

The LM3480IM3X-5 is an integrated linear voltage regulator. It features operation from an input as high as 30V and a guaranteed maximum dropout of 1.2V at the full 100 mA load. Standard packaging for the LM3480IM3X-5 is the 3-lead SuperSOT package. The applications of the LM3480IM3X-5 are Tiny alternative to LM78LXX series and similar devices, Tiny 5V±5% to 3.3V, 100 mA converter, Post regulator for switching DC/DC converter, Bias supply for analog circuits.

Parametrics

LM3480IM3X-5 absolute maximum ratings: (1)Input Voltage (IN to GND):35V; (2)Power Dissipation:333mW; (3)Junction Temp.: +150℃; (4)Ambient Storage Temp.:-65 to +150℃; (5)Soldering Time, Temp.:Wave:4 sec., 260℃, Infrared:10 sec., 240℃, Vapor Phase: 75 sec., 219℃; (6)ESD:2kV.

Features

LM3480IM3X-5 features: (1)3.3, 5, 12, and 15V versions available; (2)Packaged in the tiny 3-lead SuperSOT package.

Diagrams

LM3480IM3X-5 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

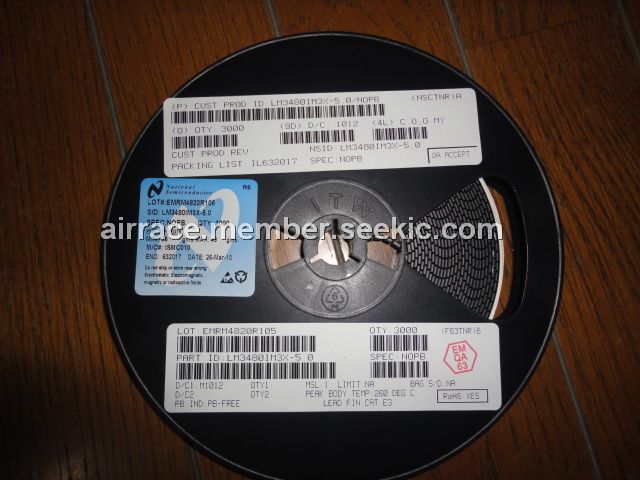

LM3480IM3X-5.0
LM3480IM3X-5.0

National Semiconductor (TI)

Low Dropout (LDO) Regulators

Data Sheet

0-3000: $0.20
LM3480IM3X-5.0/NOPB
LM3480IM3X-5.0/NOPB

National Semiconductor (TI)

Low Dropout (LDO) Regulators 100MA,QUASI LDO LINEAR VLTG REG

Data Sheet

0-1: $0.40
1-10: $0.36
10-25: $0.32
25-100: $0.22
