Product Summary

The ESD12VD5-TP is the 3.3 V to 12 V ESD protection device.

Parametrics

ESD12VD5-TP absolute maximum ratings: (1)Operating Junction and StorageTemperature: -55 to +150℃; (2)Maximum Thermal Resistance: 625℃/W Junction To Ambient.

Features

ESD12VD5-TP features: (1)For sensitive ESD protection; (2)Excellent clamping capability; (3)Low leakage; (4)ESD rating of class 3(>16KV)per Human Body Mode; (5)For space saving application; (6)Fast response ,response time less than 1ns; (7)Case Material: Molded Plastic. UL Flammability; (8)Classification Rating 94V-0 and MSL rating.

Diagrams

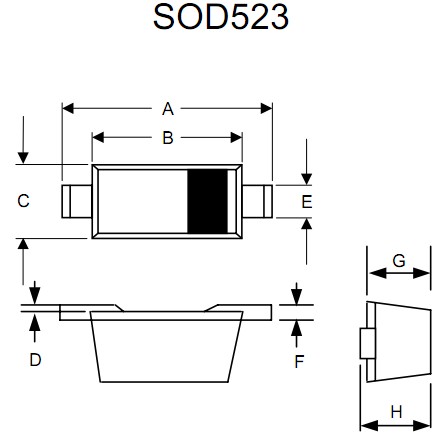

ESD12VD5-TP package

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ESD12VD5-TP
ESD12VD5-TP
Micro Commercial Components (MCC)
ESD Suppressors 12V 240W
Data Sheet
0-8000: $0.03
8000-16000: $0.03
