Product Summary

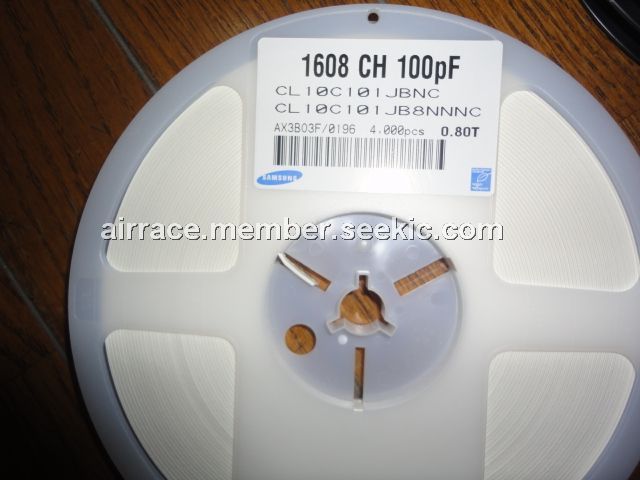

The CL10C101JBNC is SMD(Surface Mounted Device) type Multilayer Ceramic Capacitor that is used in wide ranges of capacitance. The CL10C101JBNC is paid more attentions than other capacitors due to the better frequency characteristics, higher reliability, higher withstanding voltage and so on. The applications of the CL10C101JBNC are High Frequency Circuit(Tuner, VCO, PAM etc), General Power Supply Circuit(SMPS etc), DC-DC Converter, General Electronic Circuit.

Parametrics

CL10C101JBNC general specifications: (1)EIA code:COG(CH); (2)temperature coefficient:0±30PPM/℃; (3)operation temperature range:-55℃ to +125℃; (4)nominal capacitance:100pF; (5)rated voltage:50V.

Features

CL10C101JBNC features: (1)Miniature Size; (2)Wide Capacitance and Voltage Range; (3)Highly Reliable Performance; (4)Tape & Reel for Surface Mount Assembly; (5)Low ESR; (6)High Q at High Frequencies; (7)Stable Temperature Dependence of Capacitance.

Diagrams

CL10C101JBNC package dimensions
